Tough Slim Series

Tough Slim Series

30% thinner in both outer diameter and overall weight! 40% compact !

Up to 30% thinner and 40% lighter sheath compared to our standard series
Prevent mutual abrasion between cable and offers 10 times the abrasion resistance compared to our standard series
Enhanced torsional durability with special shielding
RoHS 2 & UL standard avalible upon request (RoHS 2 substances not intentionally used)

Applications

Internal wiring in compact multi-axis robots and rotating robot joints, etc.

Durability

Bending motion : Over 20 million cycles

Torsional motion : Over 30 million cycles

U-bending motion : Over 120 million cycles

※

Reference value based on in-house test data and our own life simulation; not guaranteed.

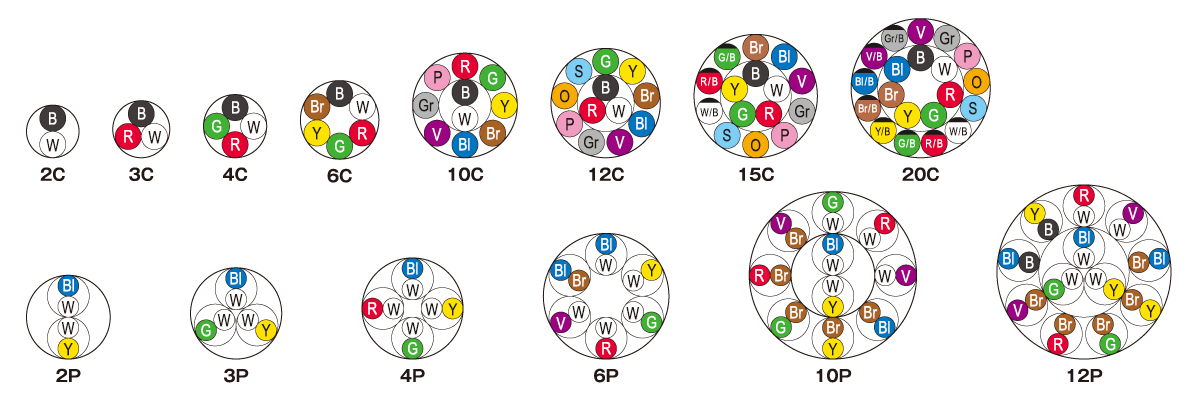

Core Color

線心識別

Data Sheet

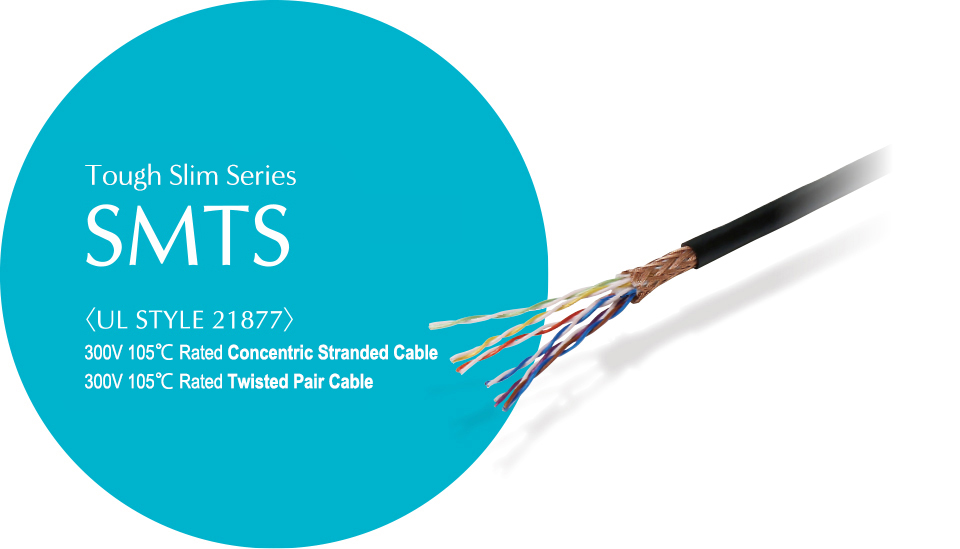

SMTS〈UL STYLE 21877〉 300V 105°C Rated Concentric Stranded Cable

SMTS〈UL STYLE 21877〉 300V 105°C Rated Twisted Pair Cable
