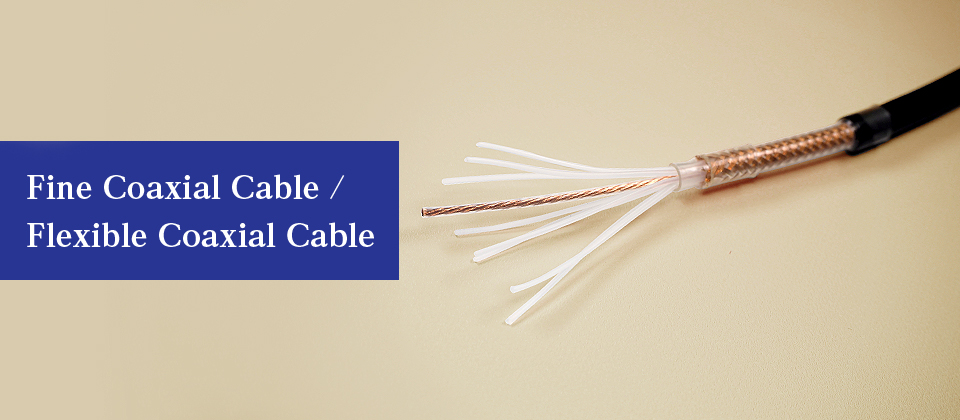

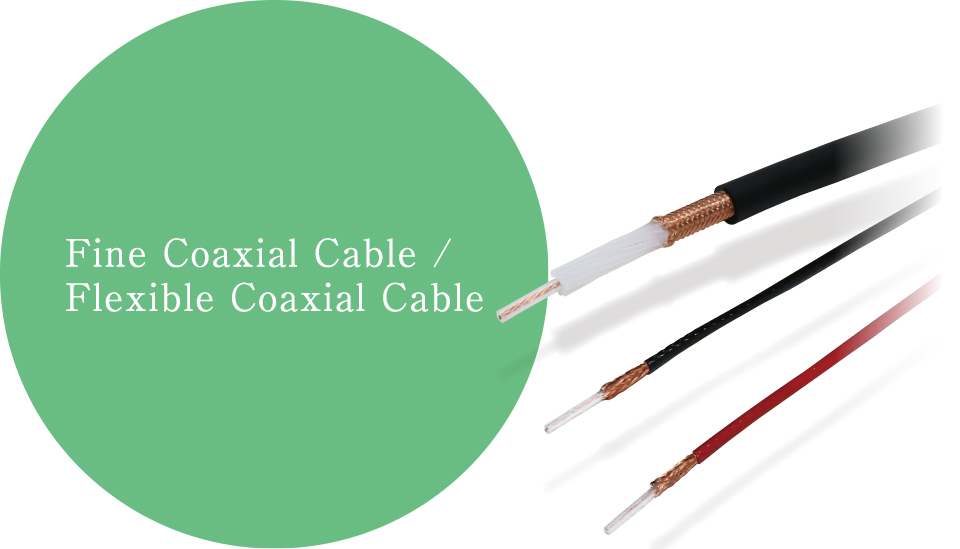

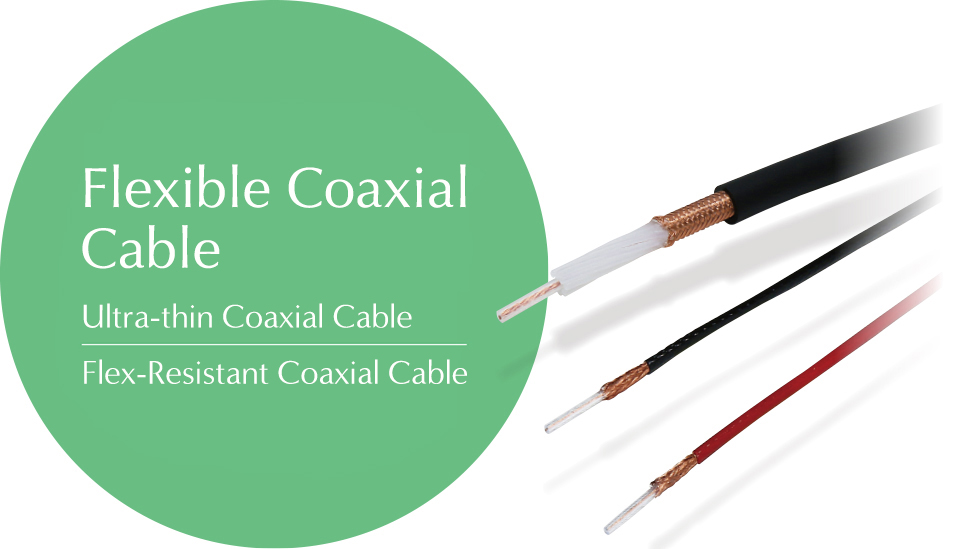

Flexible Coaxial Cable
Ultra-thin Coaxial Cable
Special alloy conductor and fluoropolymer insulation for superior flexibility and bending resistance in dynamic or tight spaces.
Data Sheet
If the table is being cut off, you can scroll horizontally to view the remaining items.
| Size | Model | Inner Conductor |
Insulation | Outer Conductor |
Cable | Standard characteristic resistance |
Attenuation | Attenuation (JIS) | |
| Configuration | Outer Diameter |
Outer Diameter |
Outer Diameter |
Outer Diameter |
(Measured) | ||||
| (strands/mm) | (mm) | (mm) | (mm) | (mm) | Ω (10MHz) |
dB/km (10MHz) |
dB/km (10MHz) |
||
| 1.5C Equivalent | RZE-S005C01S | 23 / 0.05 | 0.27 | 1.47 | 1.80 | 2.10 | 75 | 90 | 96 |
| 0.8D Equivalent | RZF-S003C01S | 18 / 0.05 | 0.24 | 0.68 | 0.78 | 1.00 | 50 | 180 | 180 |
| 1.5D Equivalent | RZE-S015C01S | 3 / 25 / 0.05 | 0.56 | 1.45 | 1.75 | 2.15 | 50 | 120 | 85 |
Flex-Resistant Coaxial Cable

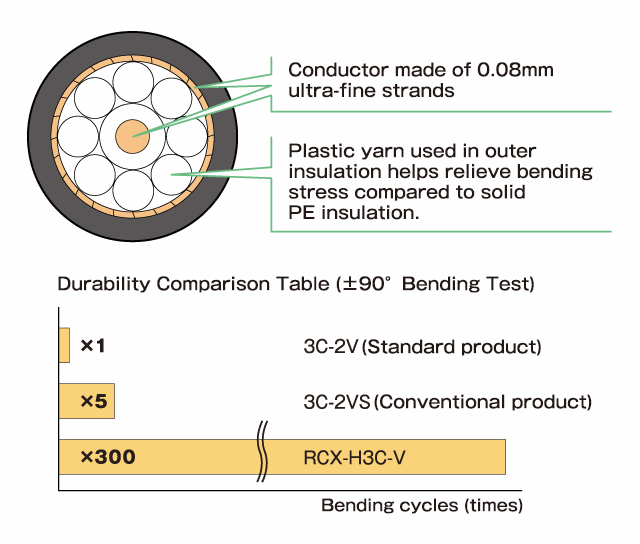

Enhanced flexibility through optimized design and materials.
Data Sheet
If the table is being cut off, you can scroll horizontally to view the remaining items.
| Size | Model | Inner Conductor |
Insulation | Outer Conductor |
Cable | Standard characteristic resistance |
Attenuation | Attenuation (JIS) | |
| Configuration | Outer Diameter |
Outer Diameter |
Outer Diameter |
Outer Diameter |
(Measured) | ||||
| (strands/mm) | (mm) | (mm) | (mm) | (mm) | Ω (10MHz) |
dB/km (10MHz) |
dB/km (10MHz) |
||
| 2.5C Equivalent | RCX-H2.5C-V | 20 / 0.08 with yarn | 0.4 | 2.8 | 3.2 | 4.2 | 75 | 78 | 52 |
| 3C Equivalent | RCX-H3C-V | 40 / 0.08 with yarn | 0.6 | 3.7 | 4.1 | 5.6 | 75 | 60 | 42 |
| 5C Equivalent | RCX-5C-V | 7 / 15 / 0.08 | 1.0 | 5.4 | 5.8 | 7.6 | 75 | 61 | 27 |
| 3D Equivalent | RCX-3D-V | 7 / 15 / 0.08 | 1.0 | 3.4 | 3.8 | 5.3 | 50 | 75 | 47 |
| 5D Equivalent | RCX-5D-V | 7 / 30 / 0.08 | 1.4 | 4.5 | 5.1 | 7.3 | 50 | 51 | 27 |
