Endurance Test

So called "Robot Cable" is expected enough endurance against various moving pattern such as bennding, twisting,sliding.Reality,however,is not that simple.It is difficult to provide robot cable that is well-adapted for all application.
We design and product Robot Cable to meet your unique needs or applications

As hereinafter present our endurance test method and result.Our Cable design based on these results and real experiences of Robot Cable applications.
We propose suitable robot cable to meet your conditions,application and enviroment.

Bending

  • Bending
  • tensile load    W=500g
    bending radius  R=20mm

    result(example)
    back and forth 5million times
    test OK

Traveling bend

  • Traveling bend
  • bending radius   R=50mm
    stroke      S=500mm

    result(example)
    back and forth 20million times
    test OK

Twisting

  • Twisting
  • twisting length   L=700mm
    twisting angle   θ=280degree

    result(example)
    back and forth 20million times
    test OK

Durability Testing equipment

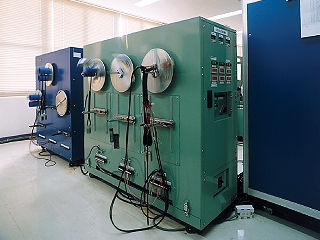

  • Bending

    Bending

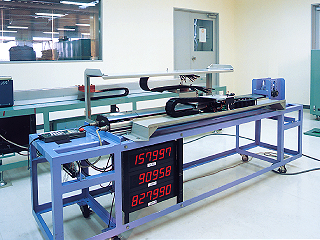

  • Traveling bend

    Traveling bend

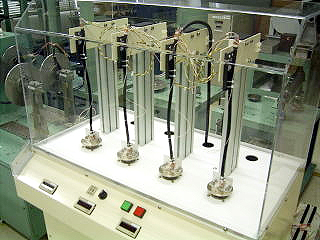

  • Twisting

    Twisting

Flame retardant/UL-approved

  • Flame retardant test equipment(JIS Standard)

    Flame retardant test equipment(JIS Standard)

  • UL-approved AWM (ETFE insulation,PVC sheath cable)

      rating
    STYLE 20921 105℃, 300V, VW-1
    STYLE 20949 105℃, 600V, VW-1
    STYLE 20276 80℃, 30V, VW-1

    UL-approved AWM (ETFE insulation,polyurethane sheath cable)

      rating
    STYLE 20233 80℃, 300V, VW-1
    STYLE 20234 80℃, 600V, VW-1
