Interface cable for moving parts

Interface cable for moving parts

Interface cable for moving part face the trade-off between transmission characteristics and endurance.
The balance of these features are keypoints. So transmission characteristics of these cable are reduced.

Yoshinogawa provides CC-Link cable,Ethernet cable(Cat.5e equivalent)、USB Cable equivalent、Camera Link Cable equivalent, IEEE1394 Cable equivalent.

CC-Link cable Ver.1.1 compatible for High-speed, high-acceleration moving part

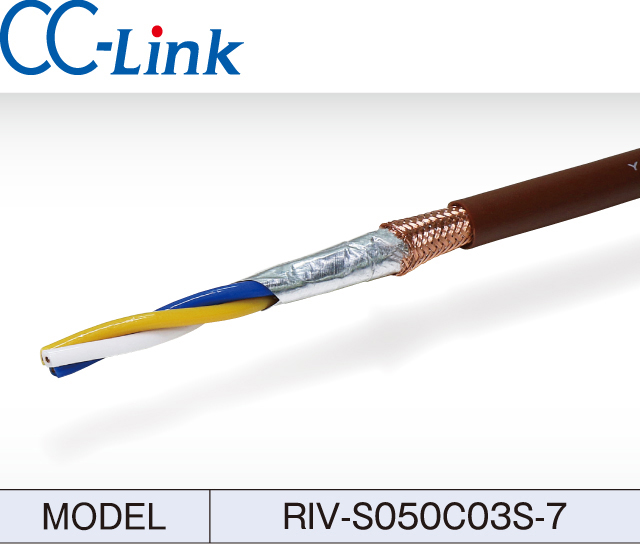

(RIV-S050C03S-7) oil resistance,heating resistance,flame retardant

CC-Link cable Ver.1.1 compatible for High-speed, high-acceleration moving part
CC-Link cable Ver.1.1 compatible for High-speed, high-acceleration moving part

If the table is you are interrupted, you can view the rest of the items to the horizontal scroll through.

size/composition 0.5m㎡×3core shielded
color core/sheath blue・yellow・white/brown
outer diameter approximatery 8.0φ
flexibility 1,000,000 times in 90degree bending
(R=5mm,1kgf)
transmission ability approximatery 70% of standard cable

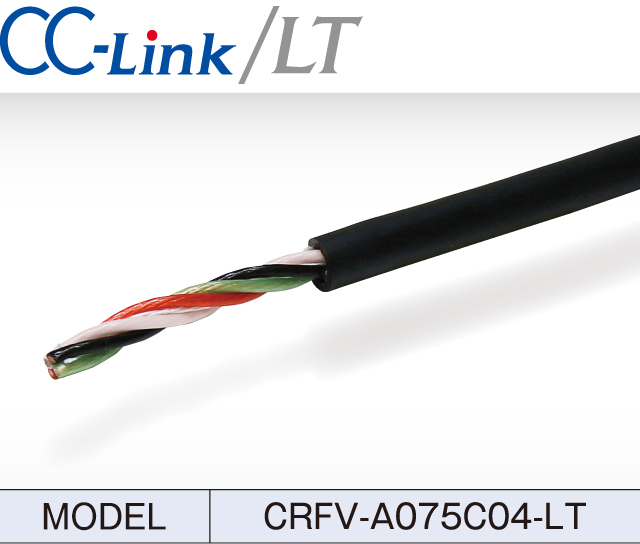

CC-Link/LT cable compatible for moving part

(CRFV-A075C04-LT) oil resistance,heating resistance,flame retardant

CC-Link/LT cable compatible for moving part
CC-Link/LT cable compatible for moving part

If the table is you are interrupted, you can view the rest of the items to the horizontal scroll through.

size/composition 0.75m㎡×4core
color core/sheath black・white・red・green/black
outer diameter approximatery 7.2φ
flexibility 4,000,000 times in 90degree bending
(R=30mm,500gf)
transmission ability meet CC-Link/LT standard

Ethernet cable, USB cable

The products have not only good electric characteristics but also excellent flexibility and durability.

If the table is you are interrupted, you can view the rest of the items to the horizontal scroll through.

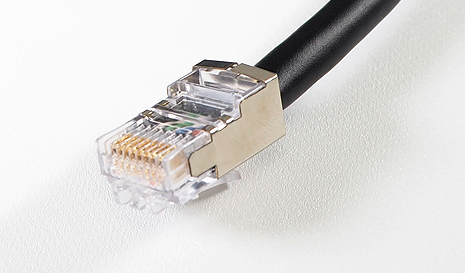

Ethernet cable
(Cat.5e equivalent)

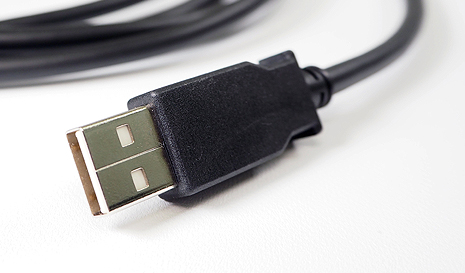

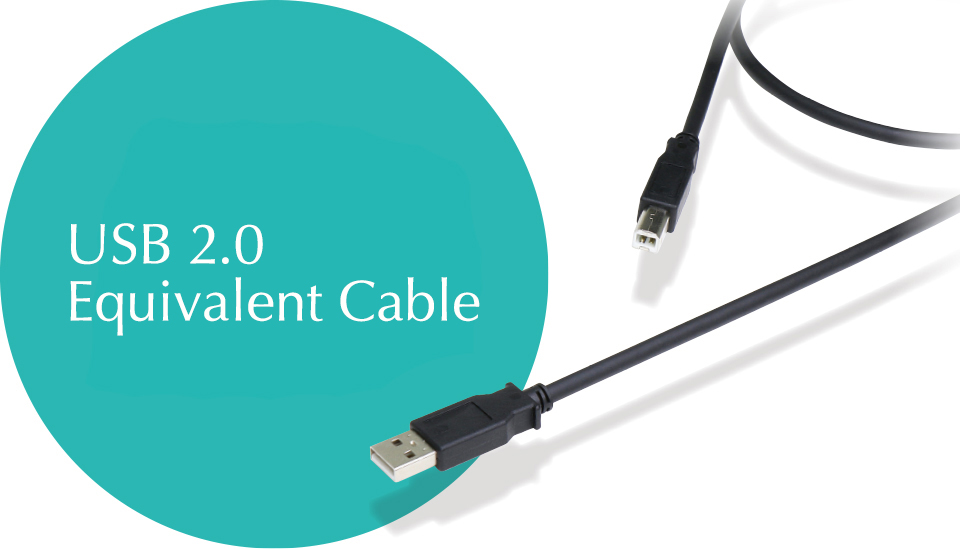

USB cable
(Ver.2 equivalent)
outer diameter 6.5mm 5.1mm
wiring length (Max.) approx.30m approx.3m
flexibility (traveling bend) 20 million times 20 million times
Impedance 100Ω(±15%) 90Ω(±15%)
delay 555ns/30m 26ns or less
skew 10ps 100ps or less

Optical Camera Link cable(under development)

This hybrid cable extends the transmision length of the interface beyond the limit imposed by the Camera Link interface specification.

The limit of Cable length and diameter depend on method of power supply to MDR/SDR connector.

If the table is you are interrupted, you can view the rest of the items to the horizontal scroll through.

Item Specifications
configuration Base Configuration
clock 20~85 MHz
cable length 20m(typical example)
cable diameter φ6mm(typical example)
connector interface MDR/SDR (including E/O & O/E converter)
power supply PoCL pin or power feeder
flexibility(traveling bend) 10 million times(R:50mm stroke:500mm)

IEEE1394、DeviceNet etc

please coutact us.
